Enhanced protection and extended service life
Boost sweeping efficiency

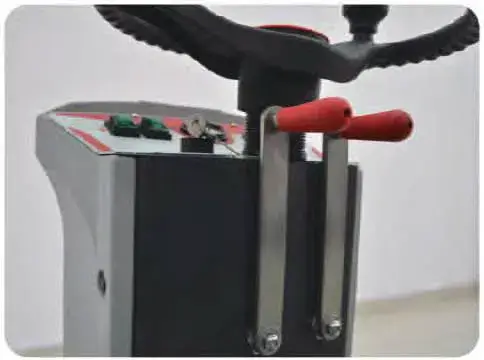

Raise and lower the rolling brush and side brush using two simple levers

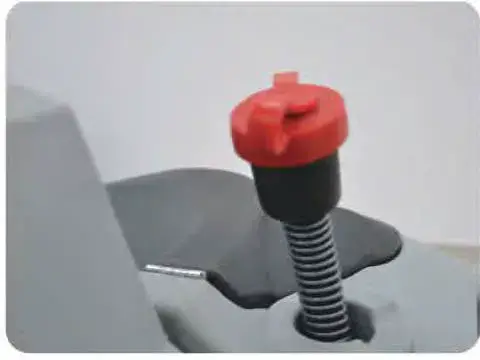

Equiped with water sprinkling system; fill the tank directly via water injection pipe
| Name | T700B |
|---|---|
| Number | BNT93020 |
| Rated voltage | DC24V |
| Work efficiency | 6600m²/h |
| Main brush diameter | 280mm |
| Side brush diameter | 450mm |
| Main brush width | 700mm |
| Working width | 1200mm |
| Main brush speed | 500rpm |
| Side brush speed | 100rpm |
| Brush motor | 24V/400W |
| Traction motor | 24V/400W |
| Traction wheels | 220mm |
| Rear wheels | 300mm |
| Vacuum motor | 24V/400W |
| Filter shaker motor | 24V/100W |
| Forward speed | 0-6km/h |
| Gradeability | 15% |
| Radius of turning circle | 1050mm |
| Sound level | 68dB(A) |
| Battery | 4*DC6V 200Ah C3 |
| Charging time | 8-10h |
| Continuous working time | 3-4h |
| Filter surface area | 5m² |
| Water tank capacity | 45L |
| Hopper volume | 90L |
| Dimensions (L*W*H) | 1650*945*1350mm |
| Battery weight | 145kg |
| Machine weight without batteries | 245kg |
| 可加装顶棚 | √ |
| Accessories | Main brush*1, Side brush*2, Battery*4, Charger*1 |
Contact Bennett Equipment Australia about the S510B and the rest of the Smart Series.
