The humanized design meets the needs of operators of different heights

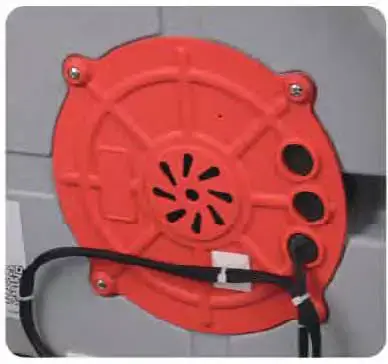

Built in design of vacuum motor. More optimized silencing method

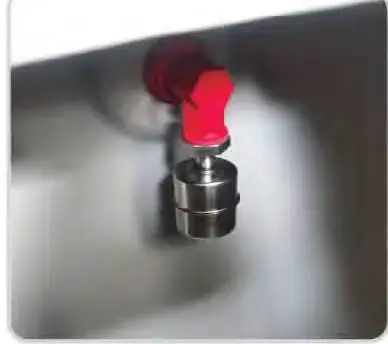

Installed inside recovery tank, the vacuum motor will stop working automatically when tank is full

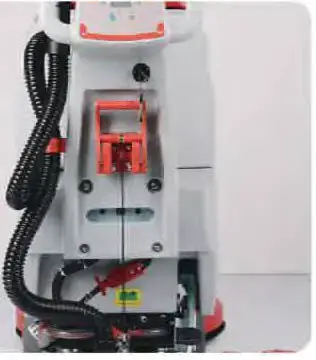

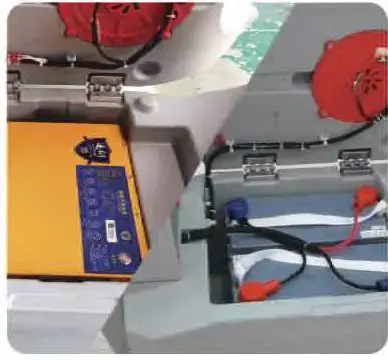

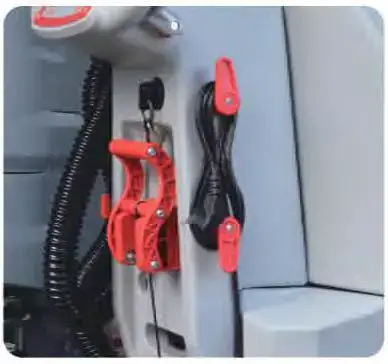

On-board charger can be installed and a winder is mounted

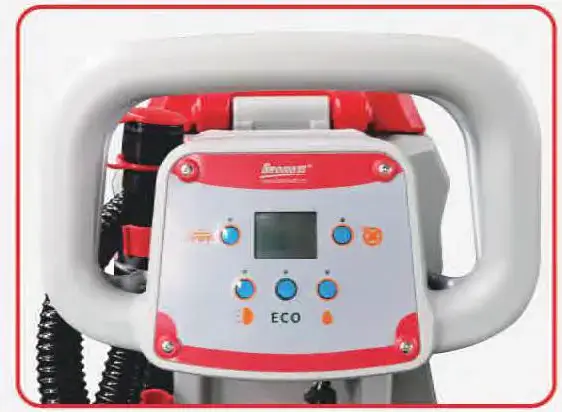

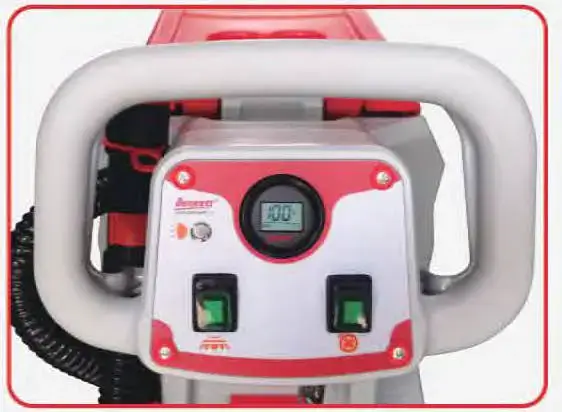

Optimized location for easy observation and reset
Installed on the side, more convenient for routine maintenance

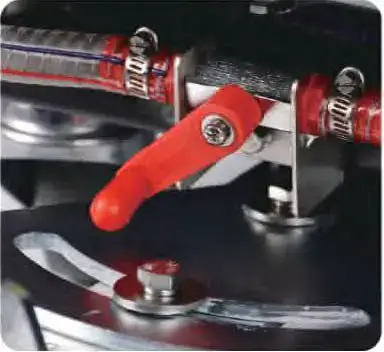

The water output can be adjusted according to actual needs

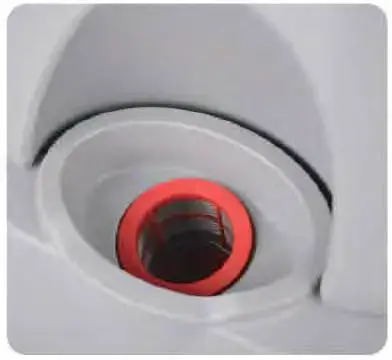

Filling water is faster and more convenient
Easy for loading and unloading. Double casters make the squeegee more solid and durable

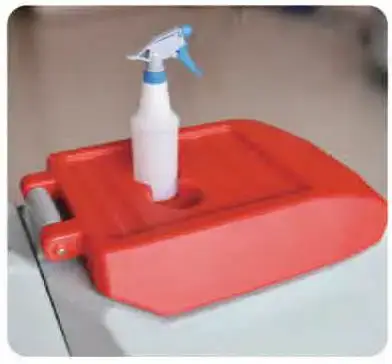

Water cup and common cleaning tools can be placed on the cover of the sewage tank

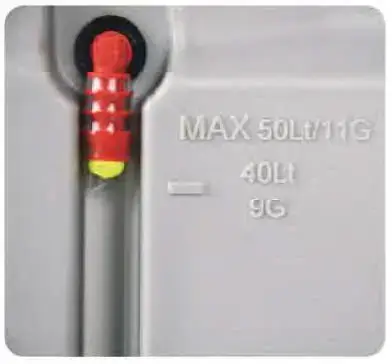

Easy to observe the water volume
The external design of suction hose makes hose cleaning easier
Prevent sewage from entering vacuum motor. Built-in air filter sponge
Lithium battery or lead-acid battery (optional)
| Name | S510B Basic | S510B Pro |
|---|---|---|
| Number | BNT61050B | BNT6109M |
| Rated voltage | DC24V | DC24V |
| Work efficiency | 1750m²/h | 1750m²/h |
| Working width | 510mm | 510mm |
| Squeegee width | 800mm | 800mm |
| Brush diameter (quantity) | 510mm (1)Pin | 510mm (1)Magnetic |
| Brush speed | 150rpm | 150rpm |
| Brush motor | 500W | 500W |
| Brush pressure | 25kg | 25kg |
| Vacuum motor | 500W | 500W |
| Suction Vacuum | 110mbar | 110mbar |
| Traction motor | / | / |
| Forward speed | / | / |
| Gradeability | / | / |
| Solution tank capacity | 50L | 50L |
| Recovery tank capacity | 60L | 60L |
| Sound level | 68dB(A) | 68dB(A) |
| Dimensions (L*W*H) | 1240*540*1030mm | 1240*540*1030mm |
| Battery | 2*DC12V 100Ah C3 | 2*DC12V 100Ah C3 |
| Charging time | 8-10h | 8-10h |
| Continuous working time | 3-4h | 3-4h* |
| Battery weight | 70kg | 70kg |
| Machine weight without batteries | 85kg | 85kg |
| Accessories | Brush*1, Battery*2, Charger*1, Pad driver (optional) | |
*: Longer working time in ECO mode
Contact Bennett Equipment Australia about the S510B and the rest of the Smart Series.
