Ride-on Floor Scrubber
New Design, Simple Shape, More Efficient and Flexible
The working state is clear through LCD screen
Equipped with onboard charger and winder, more convenient to use
Dual front wheel design delivers superior flexibility and stability during operation

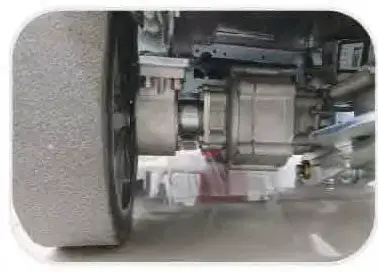

Maximum climbing gradient 20%, traction motor power 600W

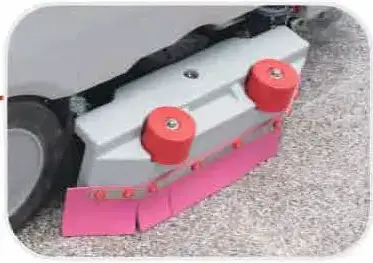

Easy for loading and unloading. Double casters make the squeegee more solid and durable
Made by rotational molding process, strong and durable
Collect garbage brought by sewage
Seat hardness, front and rear, armrest inclination and backrest inclination can be adjusted. Sensitive pressure switch, more durable
The built-in extended water injection pipe makes water injection more convenient and fast
Better water resistance, higher sensitivity, longer life
Clean water filter installed in the front makes maintenance more convenient and easier
Convenient for cleaning in dim and dark places
| Name | H120-76D Pro | H120-76D Pro GT | Name | H120-76D Pro | H120-76D Pro GT |
|---|---|---|---|---|---|
| Number | BNT6407M | BNT6412M | Radius of turning circle | 870mm | 870mm |
| Rated voltage | DC24V | DC24V | Lift motor (Brush) | 35W | 35W |
| Work efficiency | 4500m²/h | 5700m²/h | Lift motor (Squeegee) | 35W | 35W |
| Working width | 760mm | 760mm | Solution tank capacity | 120L | 120L |
| Squeegee width | 1025mm | 1025mm | Recovery tank capacity | 130L | 130L |
| Brush diameter (quantity) | 390mm (2) | 390mm (2) | Sound level | 68dB(A) | 68dB(A) |
| Brush speed | 180rpm | 180rpm | Dimensions (L*W*H) | 1560*840*1320mm | 1560*840*1320mm |
| Brush motor | 550W*2 | 550W*2 | Battery | 4*DC6V 200Ah C3 | 4*DC6V 200Ah C3 |
| Brush pressure | 40kg | 40kg | Charging time | 8-10h | 8-10h |
| Vacuum motor | 600W | 600W | Continuous working time | 3-4h | 3-4h |
| Suction Vacuum | 160mbar | 160mbar | Battery weight | 145kg | 145kg |
| Traction motor | 650W | 600W | Machine weight without batteries | 225kg | 225kg |
| Forward speed | 0-6km/h | 0-7.5km/h | Accessories | Brush*2, Battery*4, Charger*1, Pad driver (optional) | |
| Gradeability | 15% | 20% | |||
Contact Bennett Equipment Australia about the S510B and the rest of the Smart Series.
