The working state is clear through LCD screen
Integrated drive front wheels with powerful performance
Stronger gradeability
Good cleaning effect on rough ground and ground gap
Equipped with onboard charger and winder, more convenient to use
Easy for loading and unloading. Double casters make the squeegee more solid and durable

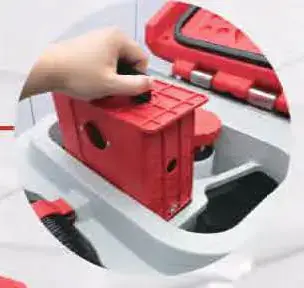

Collect garbage brought by sewage

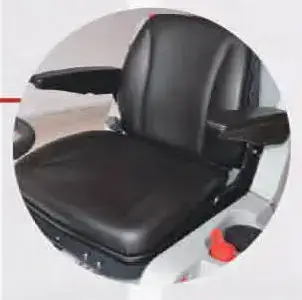

Seat hardness, front and rear, armrest inclination and backrest inclination can be adjusted. Sensitive pressure switch, more durable

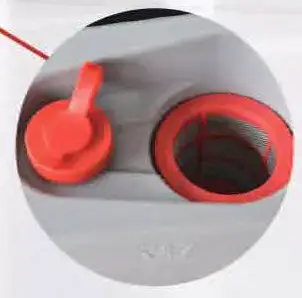

The built-in extended water injection pipe makes water injection more convenient and fast
Better water resistance, higher sensitivity, longer life

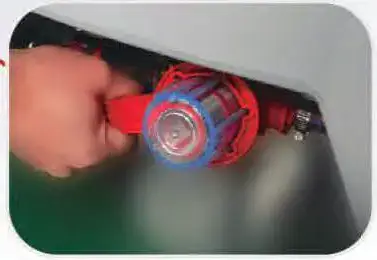

Clean water filter installed in the front makes maintenance more convenient and easier
Convenient for cleaning in dim and dark places
| Name | H120-75R Pro | H120-75R Pro GT | Name | H120-75R Pro | H120-75R Pro GT |
|---|---|---|---|---|---|
| Number | BNT64090B | BNT64140 | Gradeability | 15% | 20% |
| Rated voltage | DC24V | DC24V | Radius of turning circle | 870mm | 870mm |
| Work efficiency | 4500m²/h | 5625m²/h | Lift motor (Brush) | 35W | 35W |
| Working width | 750mm | 750mm | Lift motor (Squeegee) | 35W | 35W |
| Squeegee width | 1025mm | 1025mm | Solution tank capacity | 120L | 120L |
| Cylindrical brush diameter | 150mm | 150mm | Recovery tank capacity | 130L | 130L |
| Cylindrical brush length | 685mm | 685mm | Debris trough valid capacity | 4L | 4L |
| Cylindrical brush quantity | 2 | 2 | Sound level | 68dB(A) | 68dB(A) |
| Cylindrical brush speed | 640rpm | 640rpm | Dimensions (L*W*H) | 1560*870*1320mm | 1560*870*1320mm |
| Cylindrical brush motor | 500W*2 | 500W*2 | Battery | 4*DC6V 200Ah C3 | 4*DC6V 200Ah C3 |
| Cylindrical brush pressure | 45kg | 45kg | Charging time | 8-10h | 8-10h |
| Vacuum motor | 600W | 600W | Continuous working time | 3-4h | 3-4h |
| Suction level | 160mbar | 160mbar | Battery weight | 145kg | 145kg |
| Traction motor | 650W | 600W | Machine weight without batteries | 235kg | 235kg |
| Forward speed | 0-6km/h | 0-7.5km/h | Accessories | Cylindrical brush*2, Battery*4, Charger*1 | |
